Windows Profile

Home Windows Profile

Available Extrusion

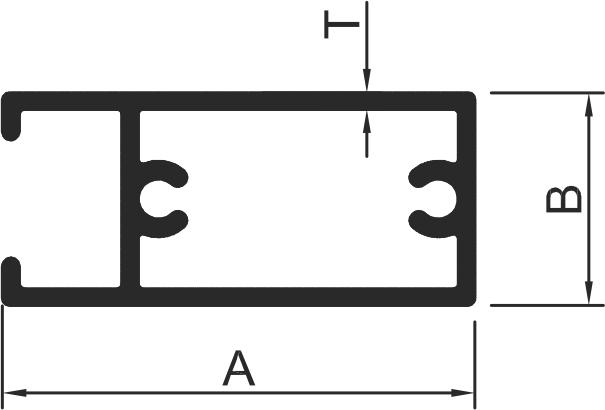

3/4” HANDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1101 40.00 18.00 0.63 0.850-1.050
SE-1102 40.00 18.00 0.83 1.100-1.200
SE-1103 40.00 18.00 0.92 1.200-1.300

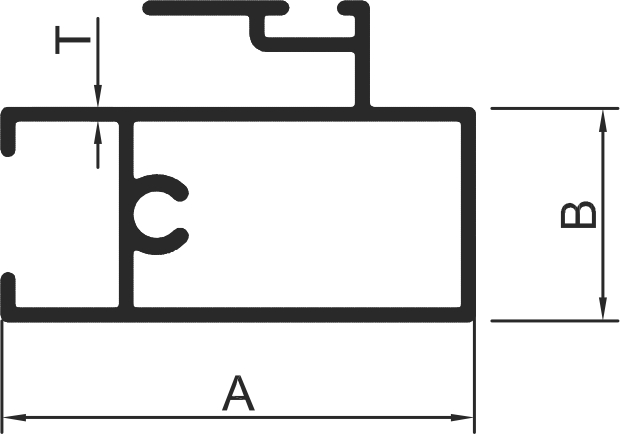

3/4” INTERLOCK

SEC. No. A B T Wt. (Kg/12’)
SE-1201 40.00 18.00 0.70 0.100-1.200
SE-1202 40.00 18.00 0.80 1.250-1.350
SE-1203 40.00 18.00 0.93 1.400-1.600

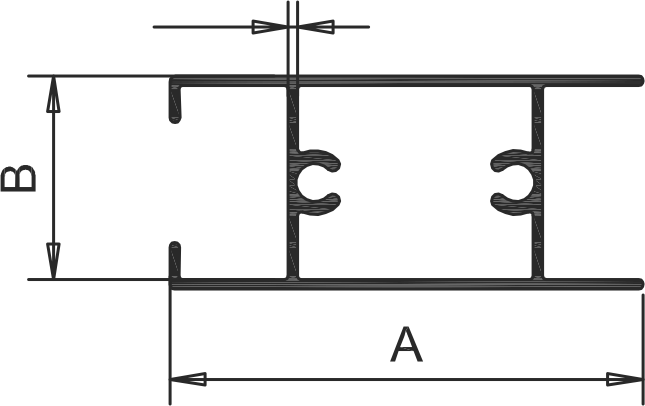

3/4” TOP BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1301 40.00 18.00 0.68 0.900-1.000
SE-1302 40.00 18.00 0.77 1.000-1.200
SE-1304 40.00 18.00 1.06 1.400-1.600

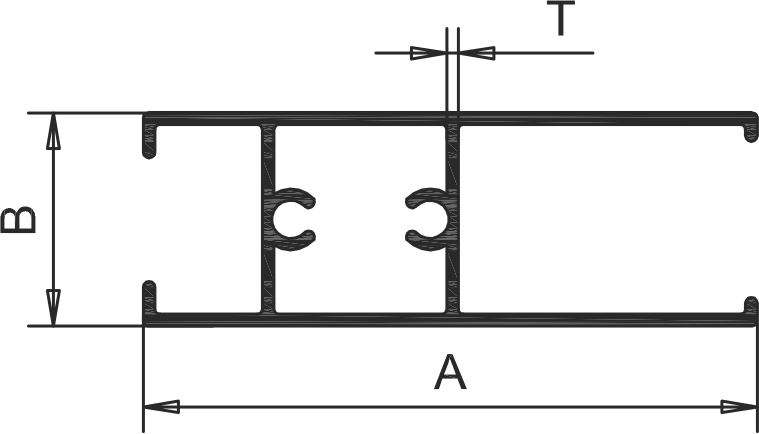

3/4” BEARING BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1311 52.00 18.00 0.83 1.300-1.500
SE-1312 52.00 18.00 0.95 1.500-1.700

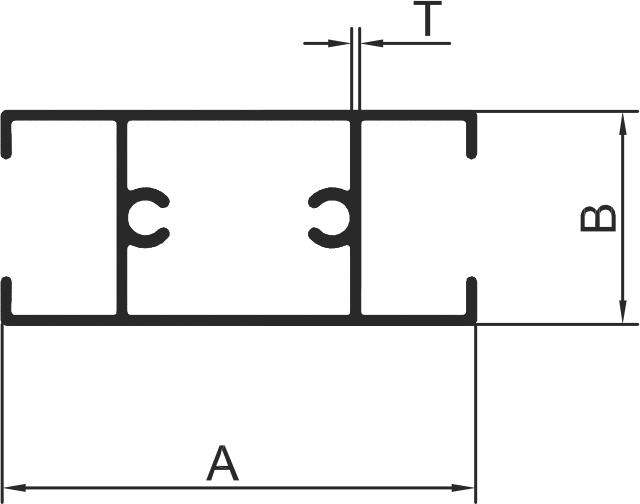

3/4” MIDDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1401 40.00 18.00 0.64 0.900-1.000
SE-1402 40.00 18.00 0.80 1.100-1.300

60X18 HANDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1501 60.00 18.00 1.05 1.800-2.000

60X18 HANDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1601 60.00 18.00 0.90 1.900-2.100

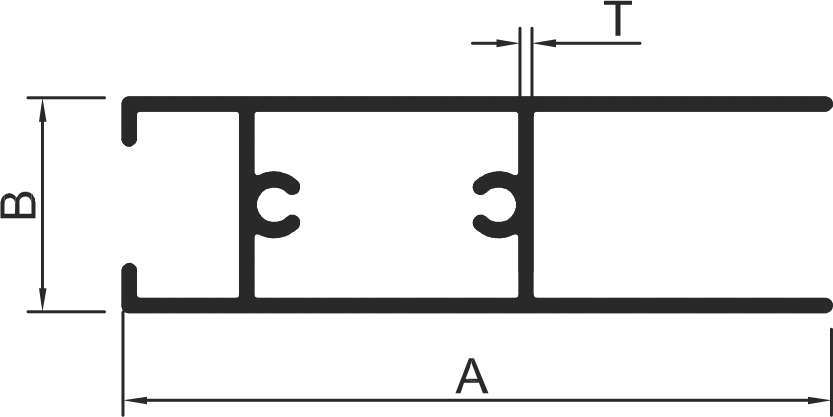

60X18 TOP BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1701 60.00 18.00 1.05 1.800-2.000

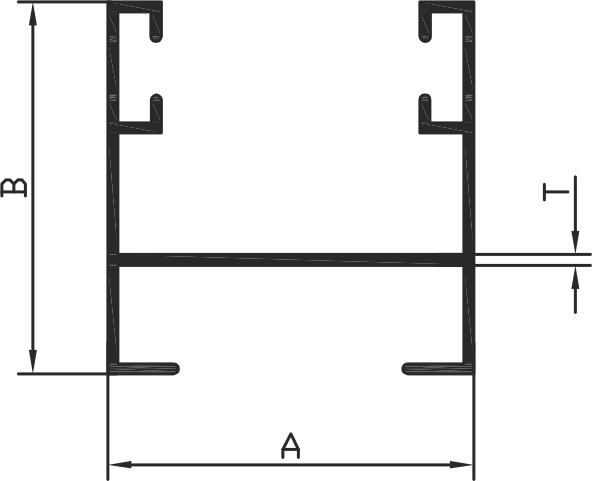

3/4” SINGLE TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-1901 31.00 31.50 0.80 1.000-1.200

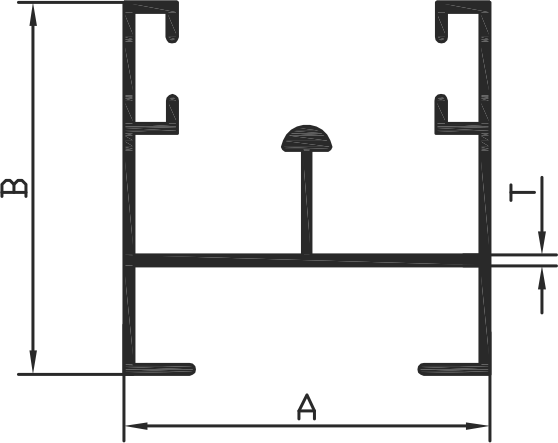

3/4” SINGLE TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2001 31.00 31.50 0.80 1.100-1.300

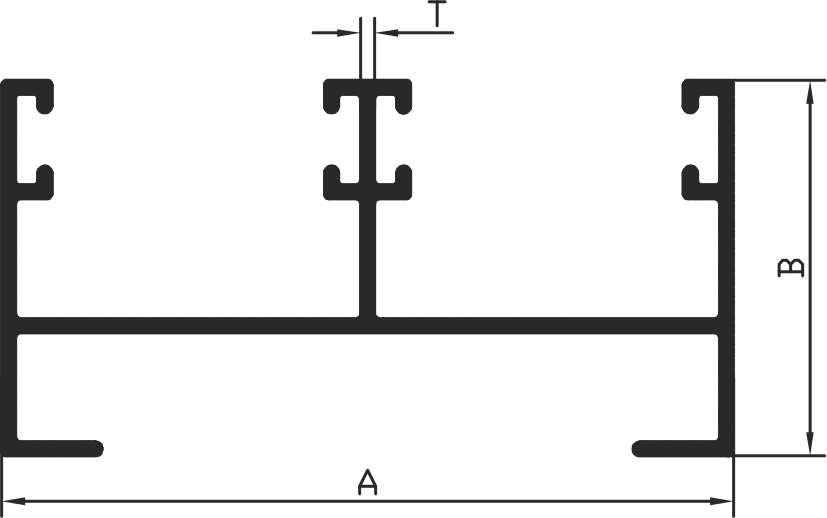

3/4” 2. TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2101 62.00 31.80 0.67 1.300-1.500
SE-2103 62.00 31.80 0.94 1.800-2.000
SE-2105 62.00 31.80 1.21 2.300-2.500

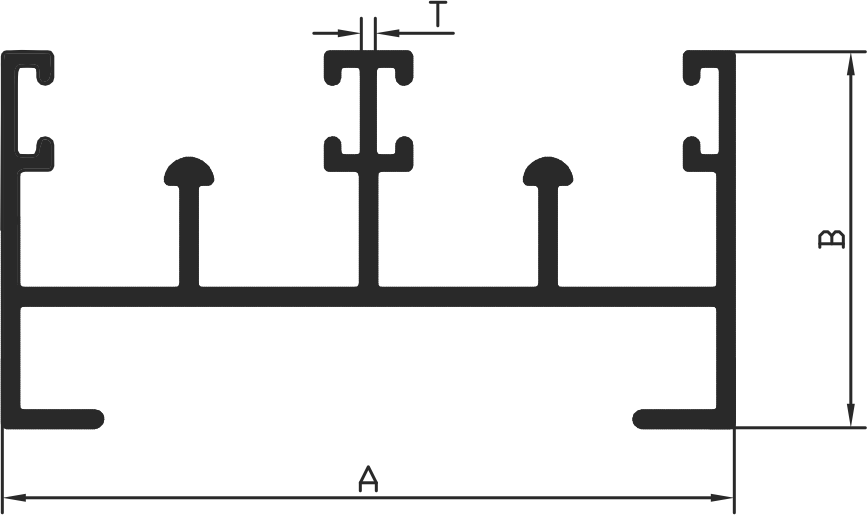

3/4” 2. TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2201 62.00 31.80 0.70 1.600-1.800
SE-2203 62.00 31.80 0.87 2.000-2.200

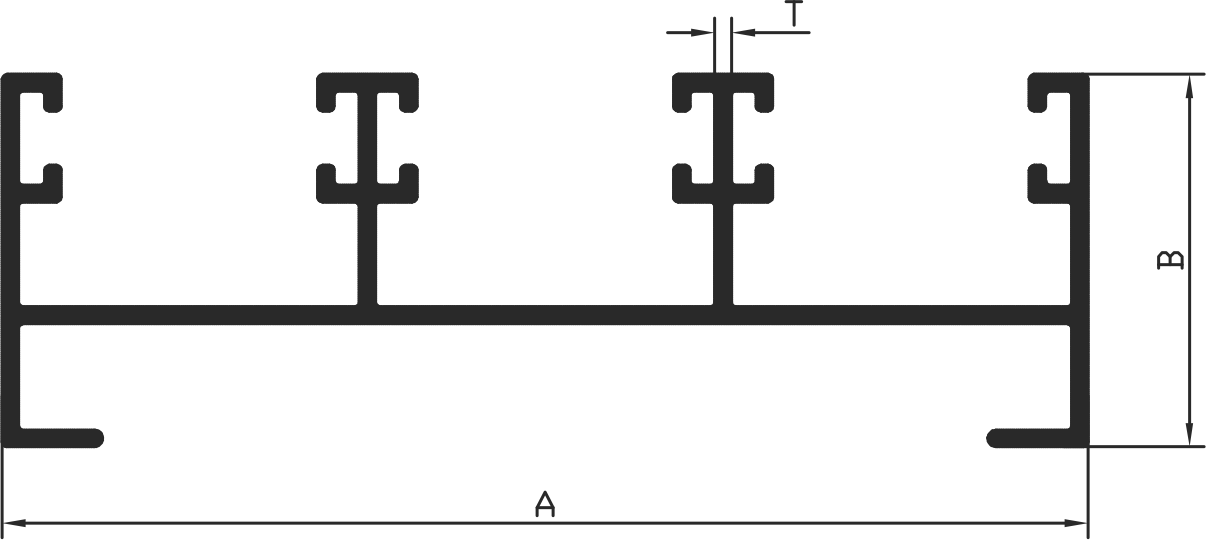

3/4” 3. TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2301 92.00 31.80 0.67 1.800-2.000
SE-2303 92.00 31.80 0.93 2.400-2.600
SE-2305 92.00 31.80 1.14 2.850-3.050

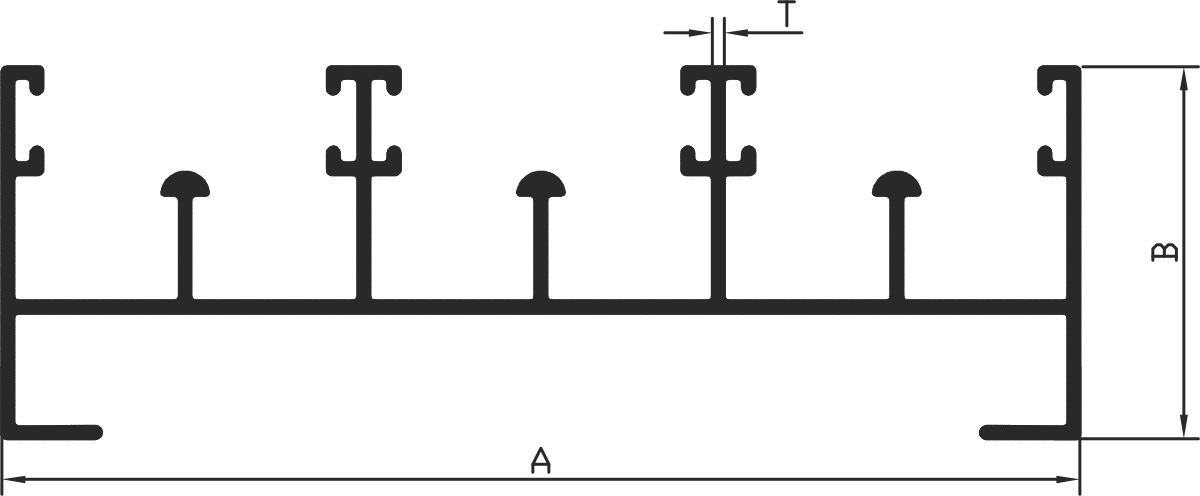

3/4” 3. TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2401 92.00 31.80 0.76 2.400-2.600
SE-2403 92.00 31.80 0.88 2.650-2.850
SE-2405 92.00 31.80 1.02 3.000-3.200

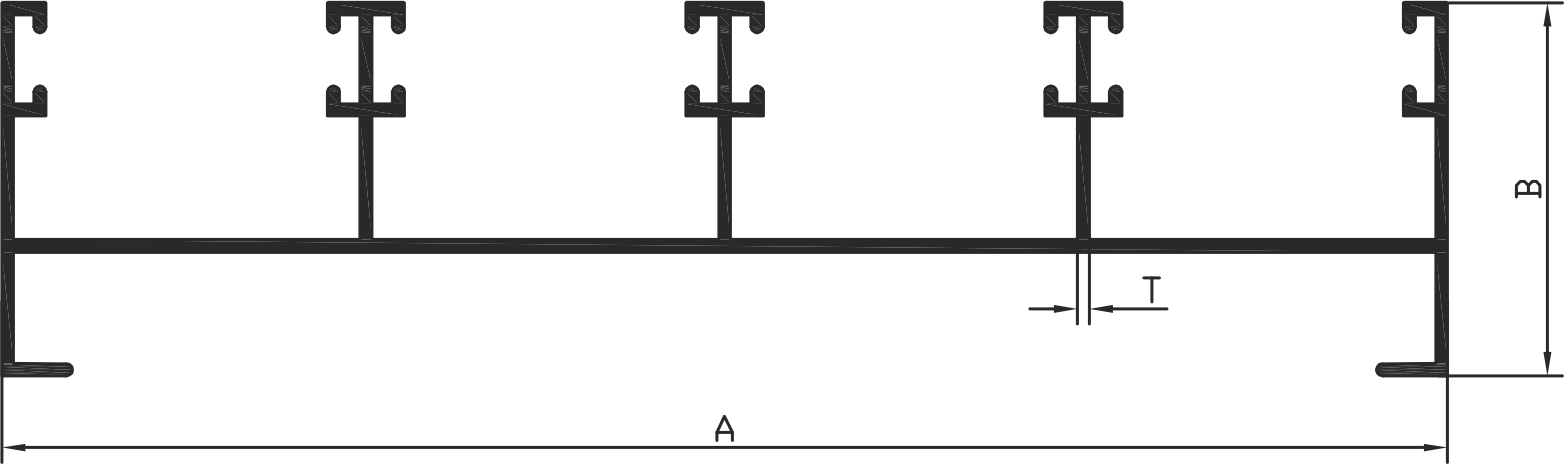

3/4” 4. TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2501 122 31.80 0.96 3.200-3.400

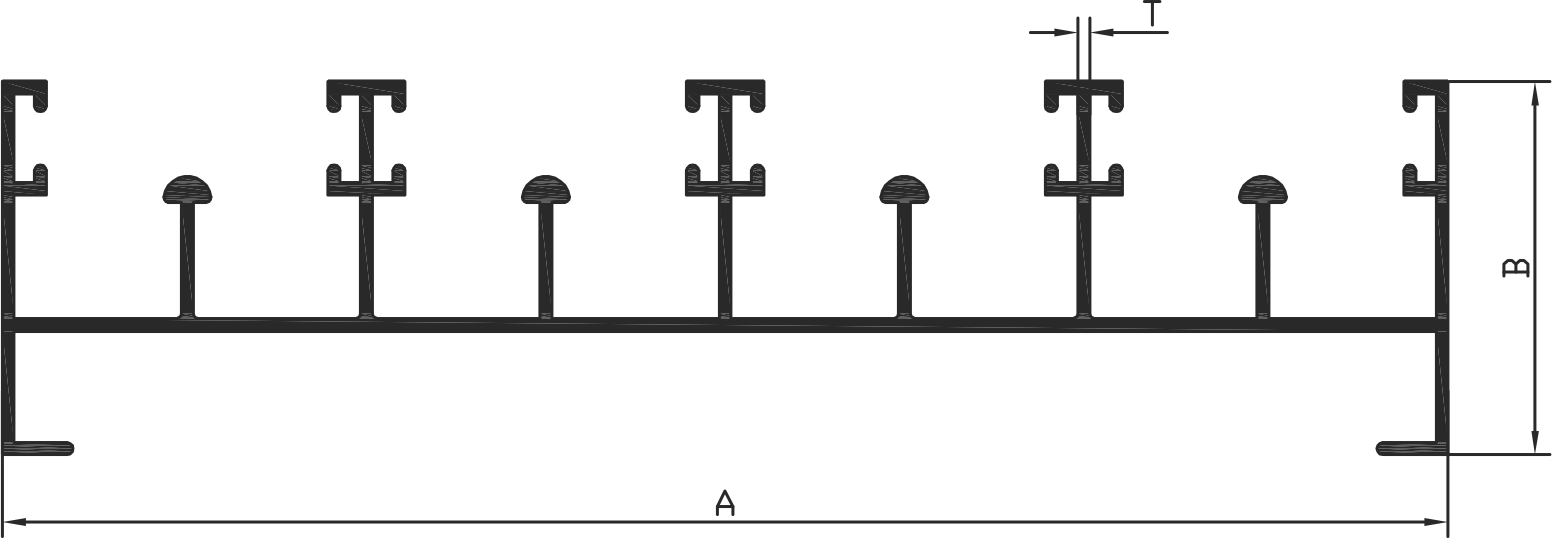

3/4” 4. TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2601 122 31.80 1.00 4.000-4.200

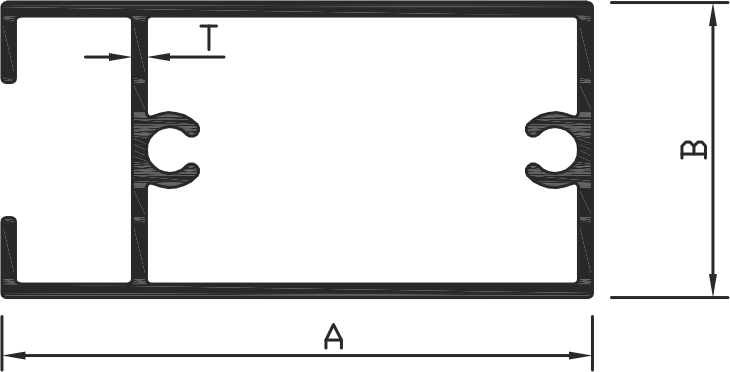

1” HANDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1151 50.00 25.00 0.66 1.200-1.400
SE-1153 50.00 25.00 1.04 1.800-2.000

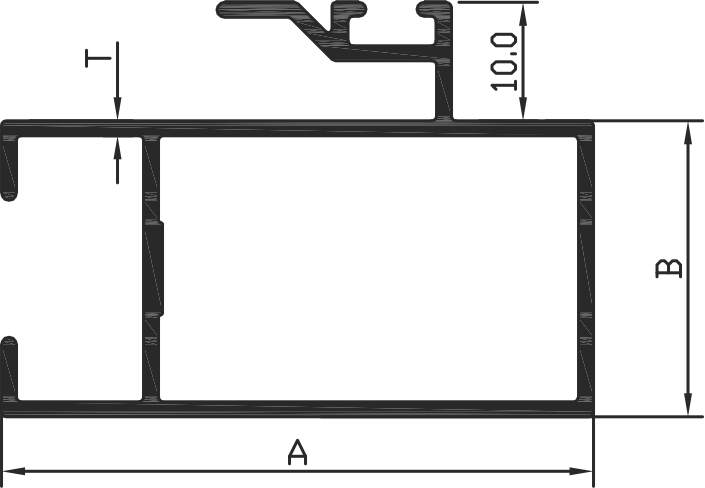

1” INTERLOCK

SEC. No. A B T Wt. (Kg/12’)
SE-1251 50.00 25.00 1.00 1.900-2.100

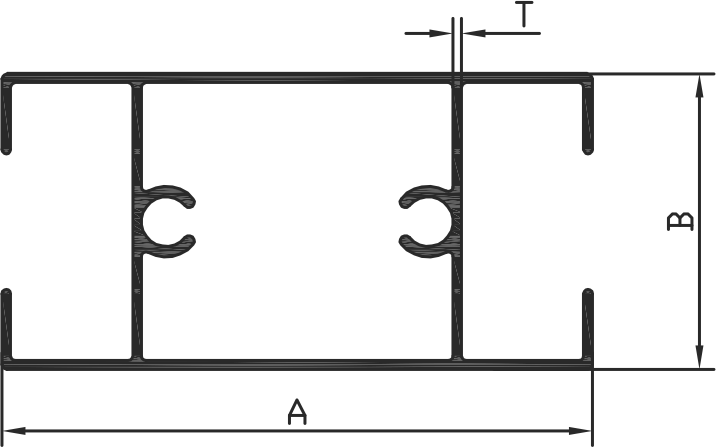

1” MIDDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1451 50.00 25.00 0.75 1.400-1.600
SE-1453 50.00 25.00 0.97 1.800-2.000

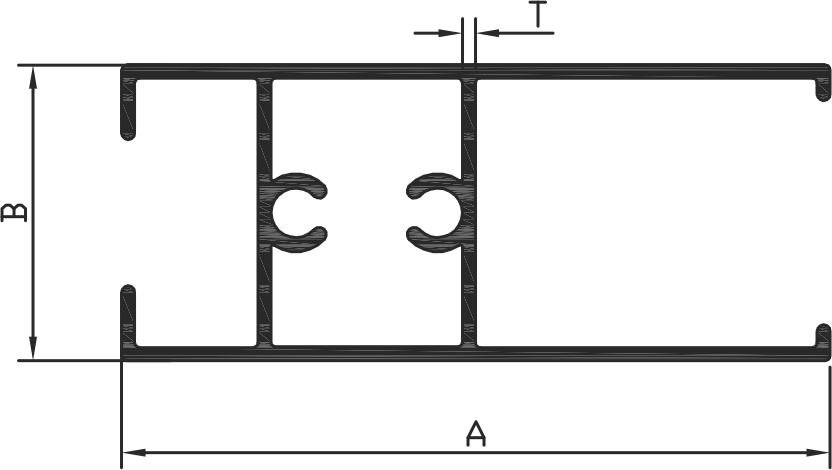

1” BEARING BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1351 60.00 25.00 1.00 2.000-2.200
SE-1353 60.00 25.00 1.31 2.600-2.800

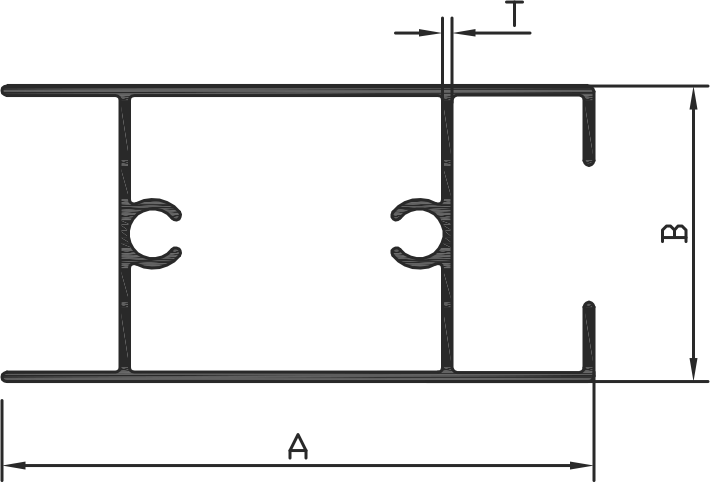

1” TOP BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1361 50.00 25.00 0.81 1.400-1.600

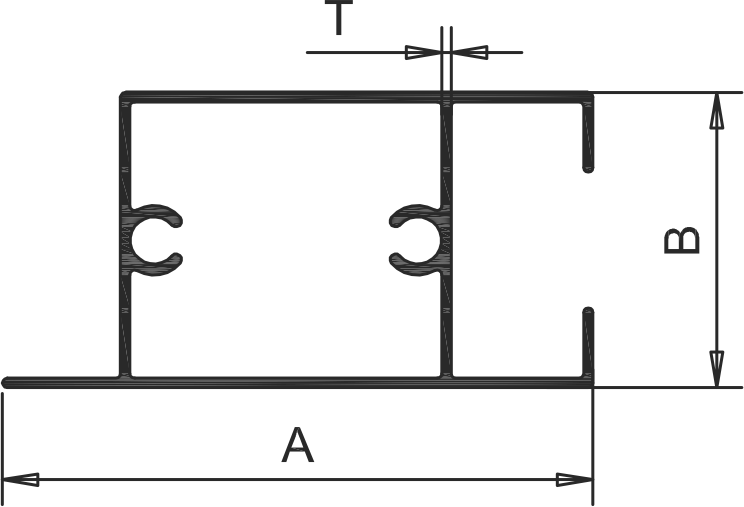

1” SINGLE LEG BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-1370 50.00 25.00 0.78 1.300-1.500

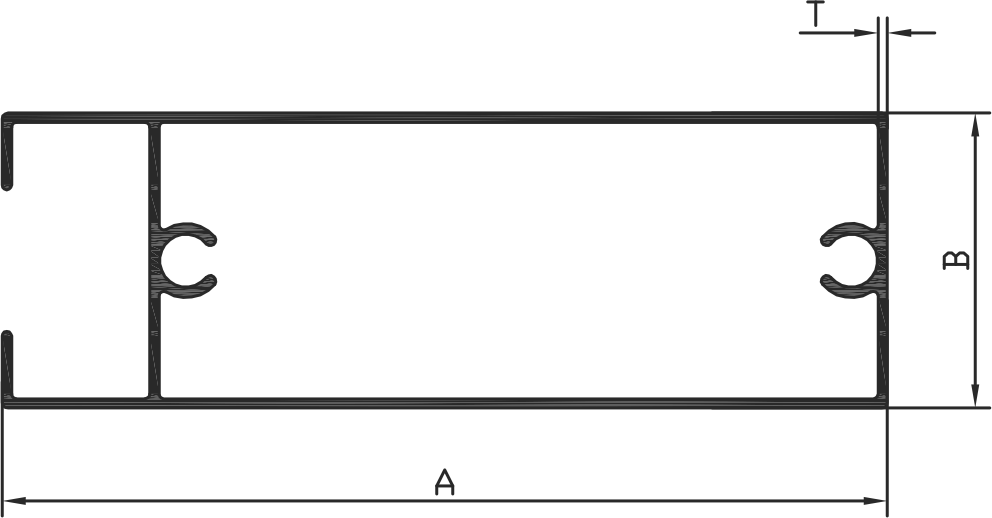

3X1 PLAIN HANDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1171 75.00 25.00 0.81 1.800-2.000
SE-1172 75.00 25.00 0.90 2.000-2.200

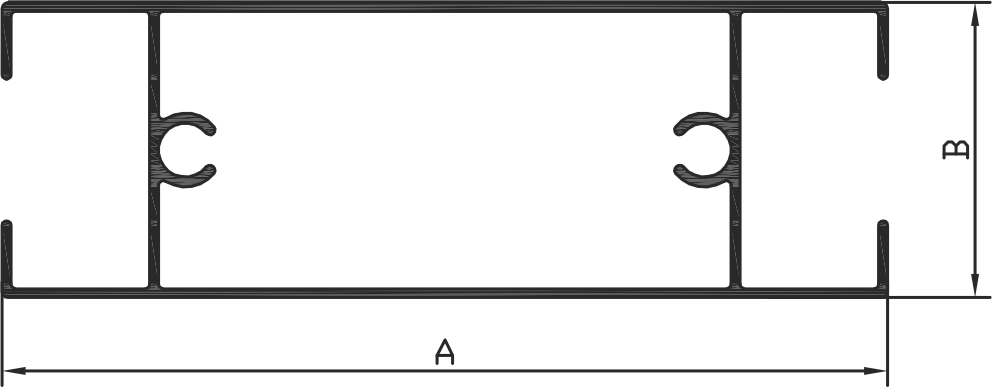

3X1 PLAIN MIDDLE

SEC. No. A B T Wt. (Kg/12’)
SE-1471 75.00 25.00 0.80 1.900-2.100
SE-1472 75.00 25.00 0.90 2.100-2.300

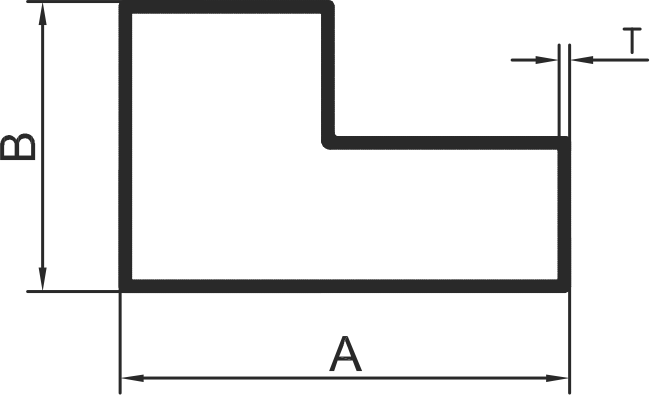

1.5 X 1 L.PIPE

SEC. No. A B T Wt. (Kg/12’)
SE-1801 38.00 24.50 0.70 0.800-1.000
SE-1803 38.00 24.50 1.50 1.200-1.400

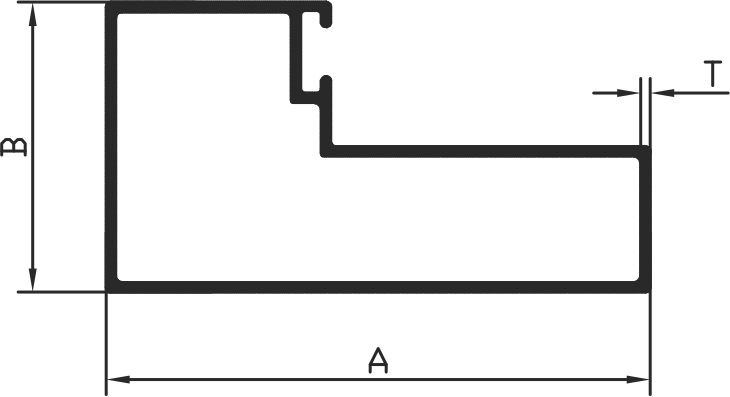

2X1 L.PIPE

SEC. No. A B T Wt. (Kg/12’)
SE-1851 46.00 24.50 0.76 1.000-1.200
SE-1853 46.00 24.50 1.04 1.400-1.600

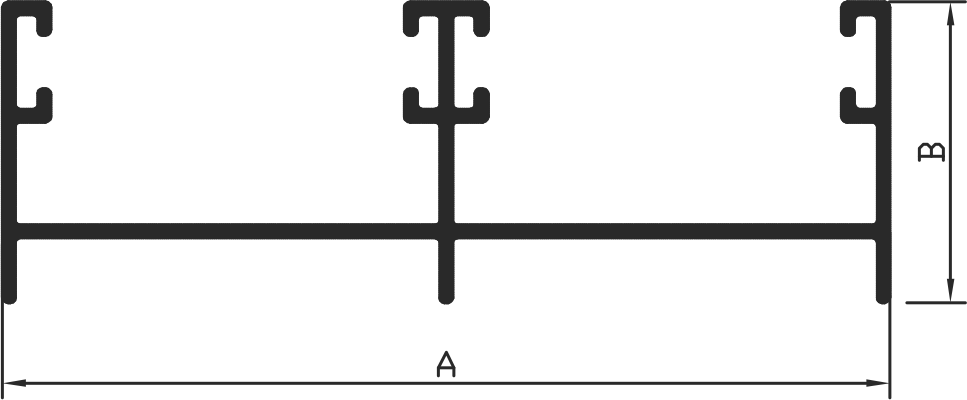

1” 2 TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2151 75.00 25.40 1.09 2.000-2.200

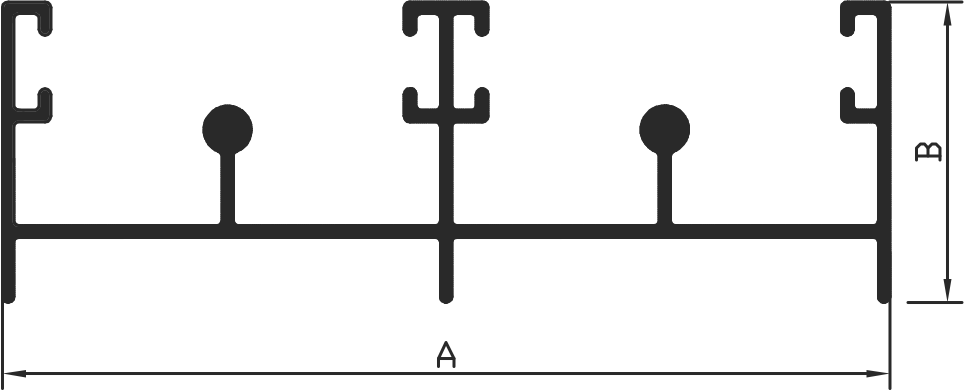

1” 2 TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2251 75.00 25.40 1.09 2.400-2.600

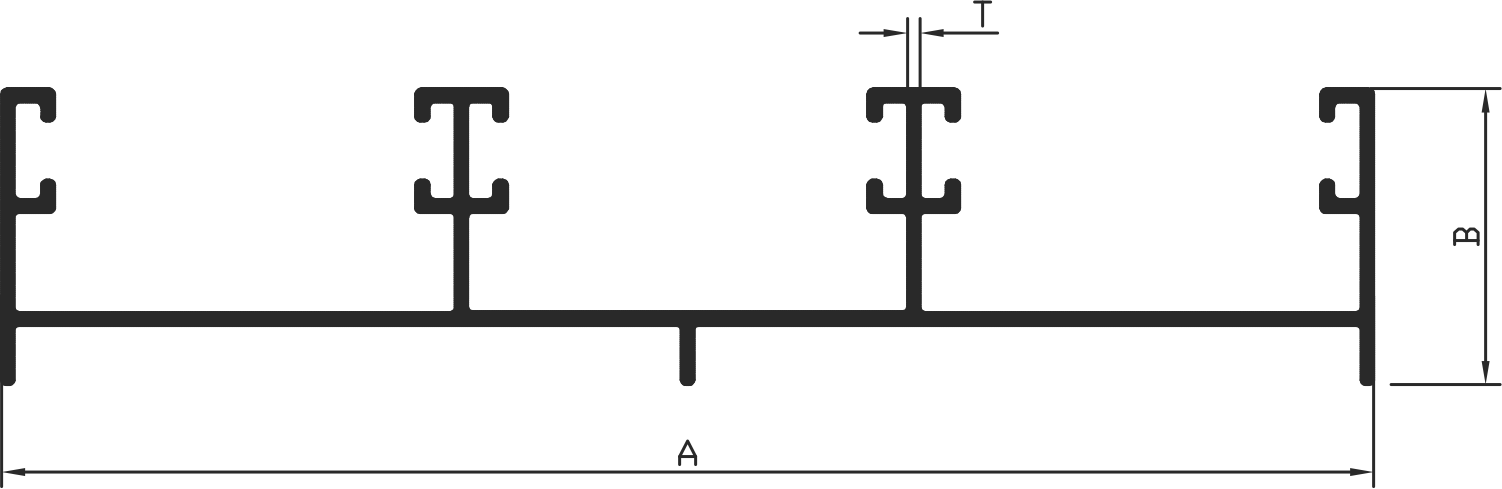

1” 3 TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2351 116.0 25.00 1.12 3.000-3.200

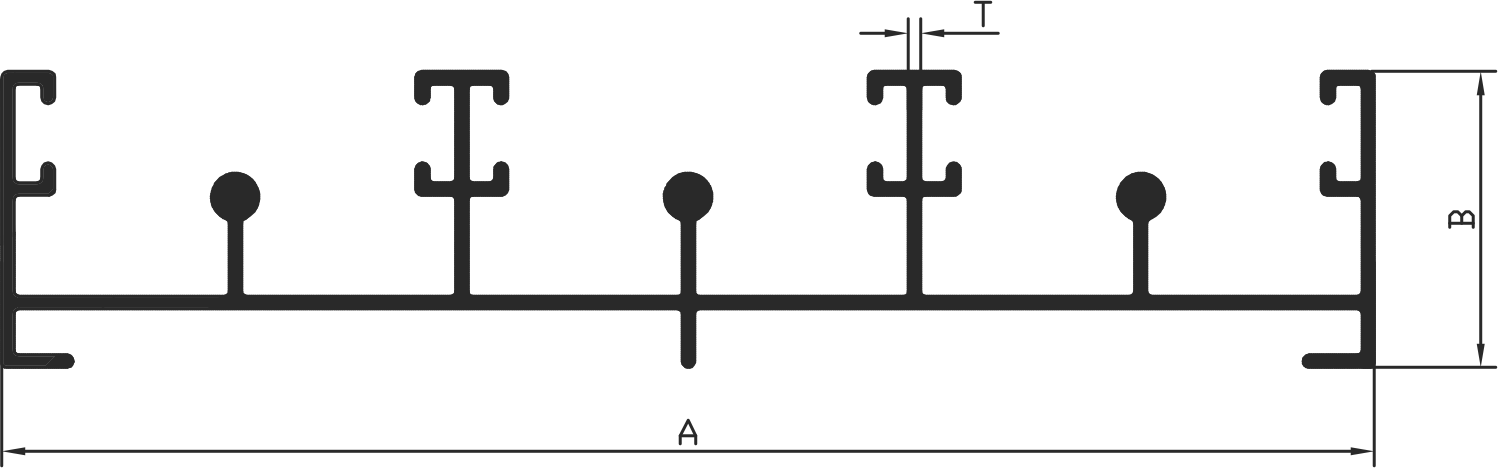

1” 3 TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2451 116.0 25.00 1.10 3.600-3.800

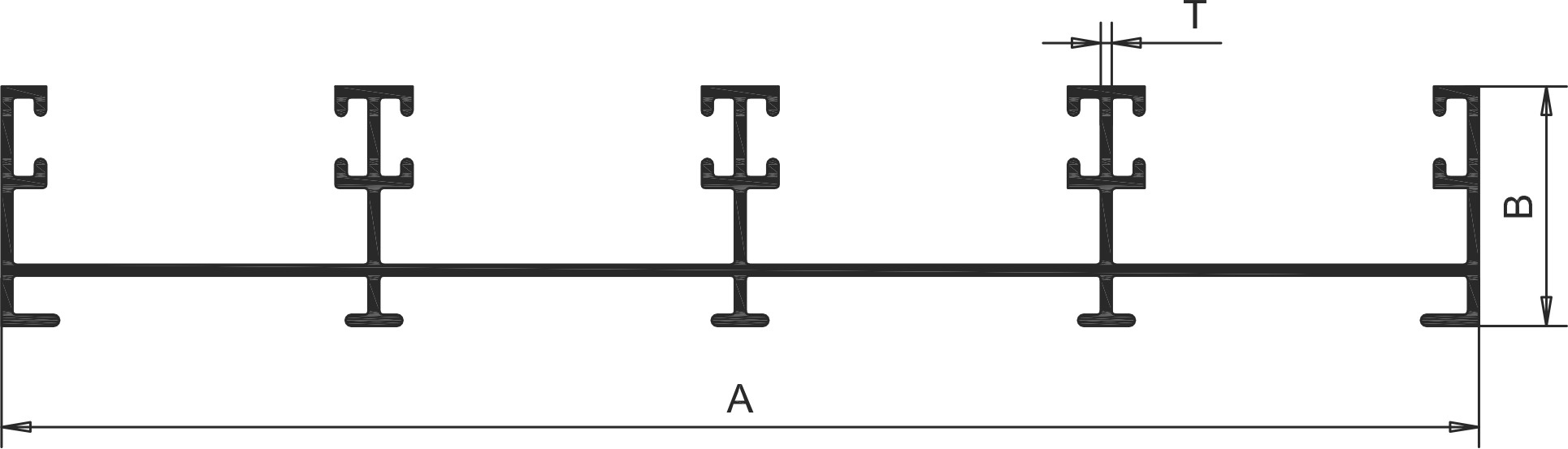

1” 4 TRACK TOP

SEC. No. A B T Wt. (Kg/12’)
SE-2551 154.0 25.00 1.14 4.300-4.500

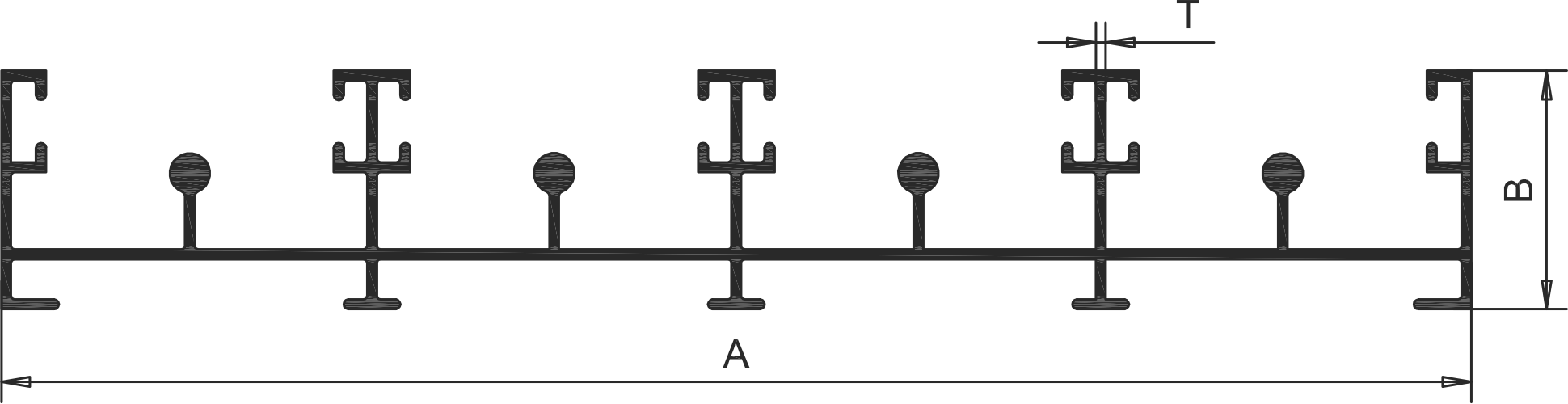

1” 4 TRACK BOTTOM

SEC. No. A B T Wt. (Kg/12’)
SE-2651 154.0 25.00 1.02 4.700-5.100
