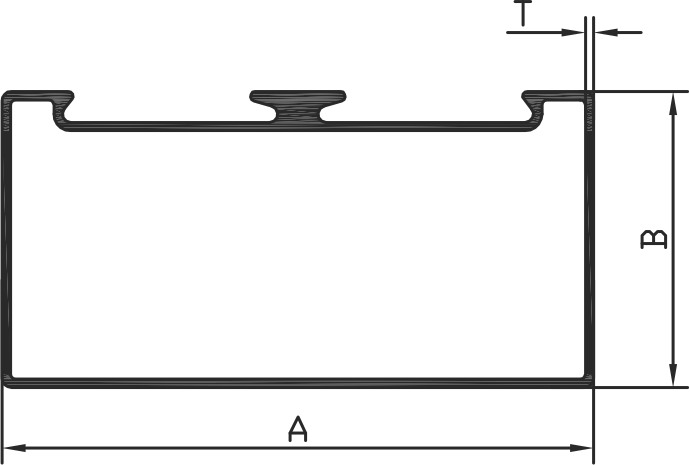

2X1 SINGLE PARTITION

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3301	50.00	25.00	0.92	1.500-1.700

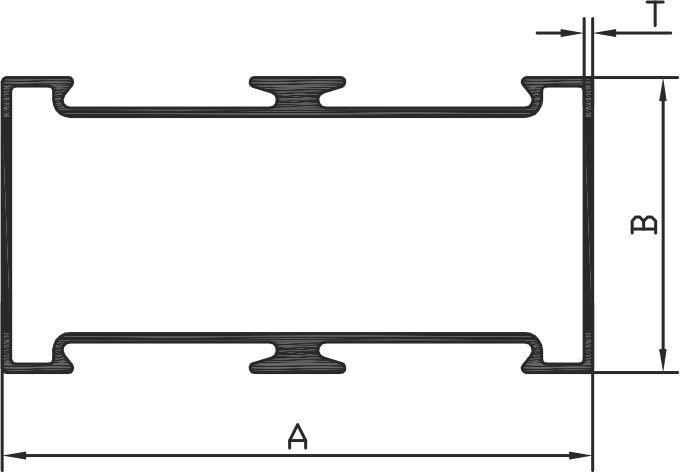

2X1 SINGLE PARTITION

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3401	50.00	25.00	0.86	1.600-1.800

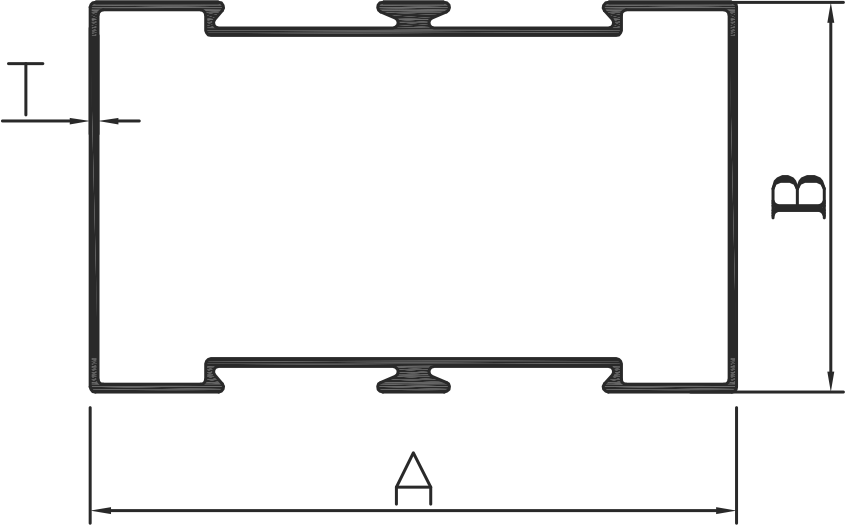

2.5 X 1.5 SINGAL PARTITION

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3311	63.00	38.00	0.83	1.800-2.000
SE-3313	63.00	38.00	1.04	2.200-2.400
SE-3318	63.00	38.00	1.57	3.200-3.400
SE-3351	63.00	38.00	1.90	3.800-4.000

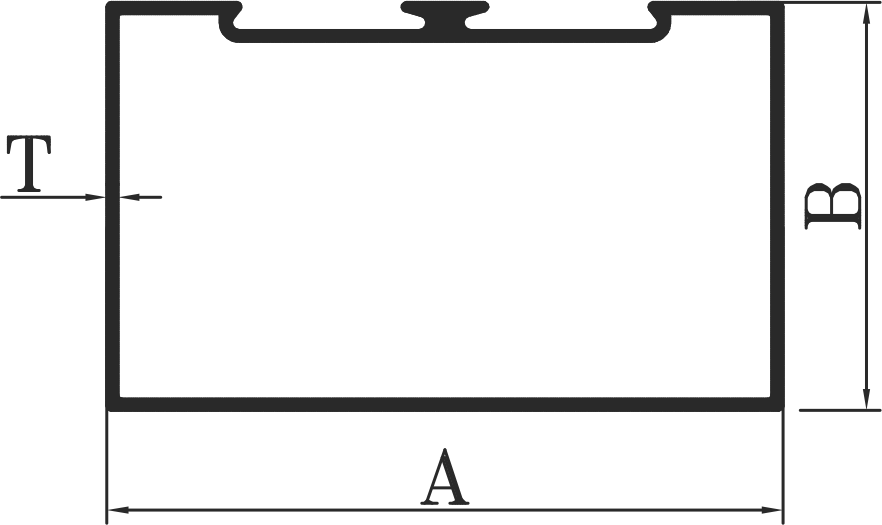

2.5X1.5 SINGAL PARTITION

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3411	63.00	38.00	0.74	1.800-2.000
SE-3413	63.00	38.00	1.00	2.300-2.500
SE-3418	63.00	38.00	1.45	3.200-3.400
SE-3451	63.00	38.00	1.78	3.800-4.000

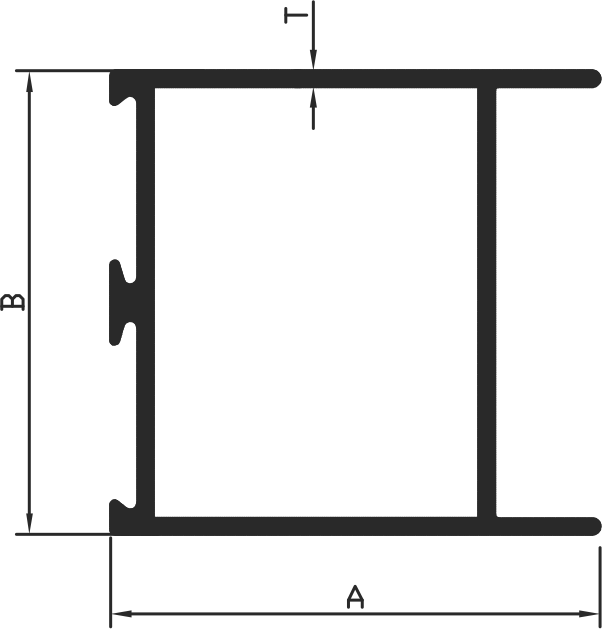

DOOR TOP

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3601	47.00	44.45	1.03	2.000-2.200

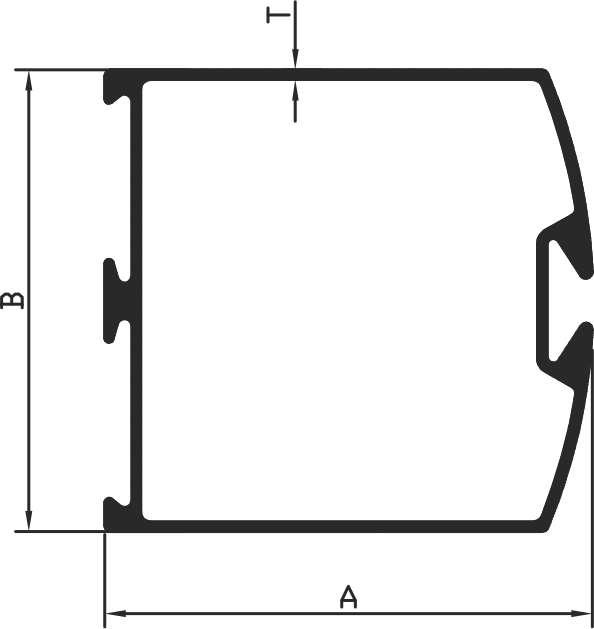

DOOR VERTICAL

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3701	47.00	44.45	1.04	2.200-2.400

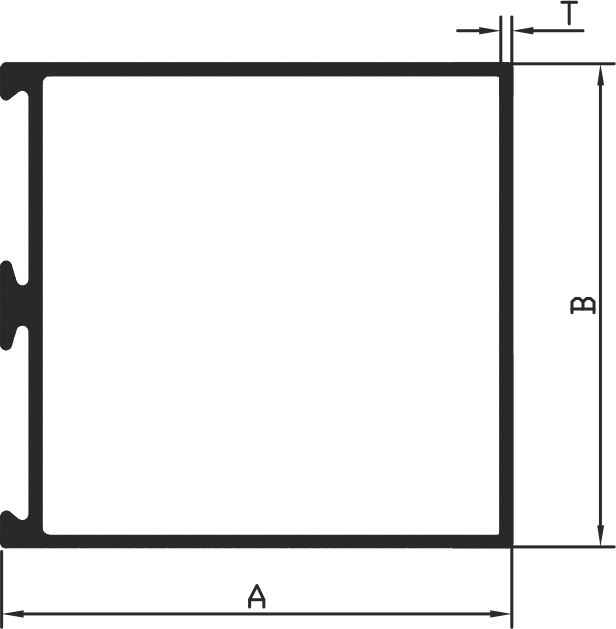

DOOR MIDDLE SINGLE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3901	47.00	44.45	1.05	2.000-2.200

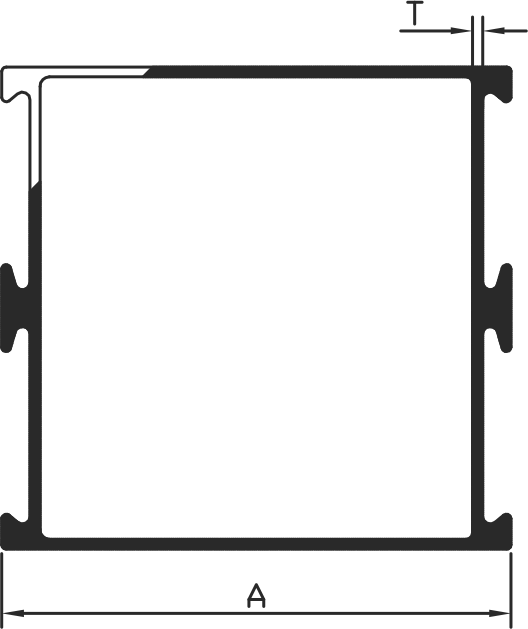

DOOR MIDDLE DOUBLE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3801	47.00	44.45	1.05	2.200-2.400

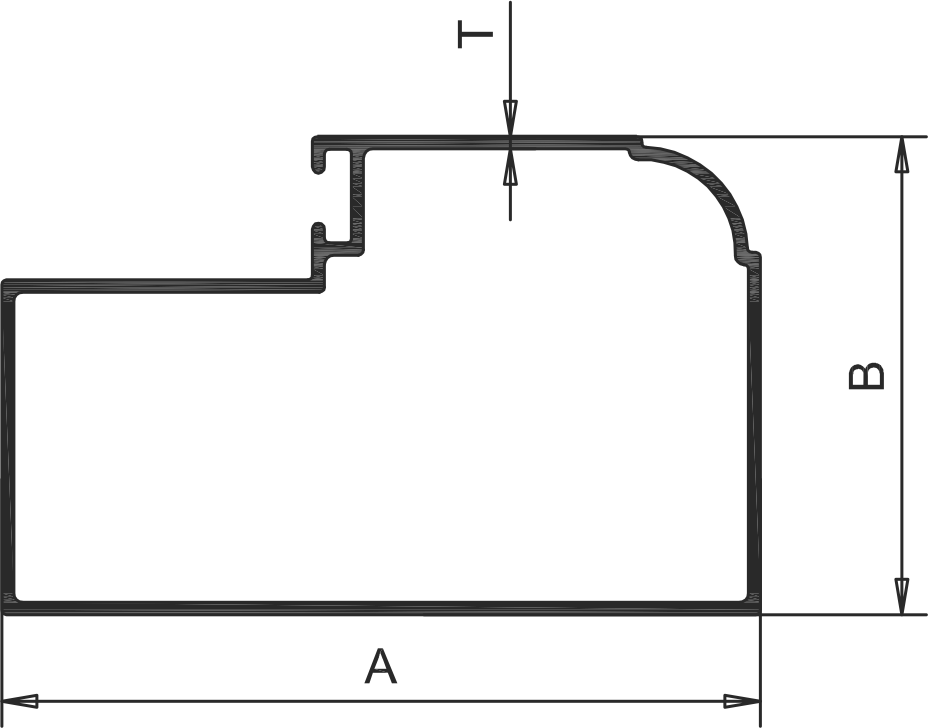

2.5 X 1.5 MOULDING P PIPE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3001	64.00	40.00	0.90	1.800-2.000
SE-3003	1.04	40.00	0.90	2.100-2.300

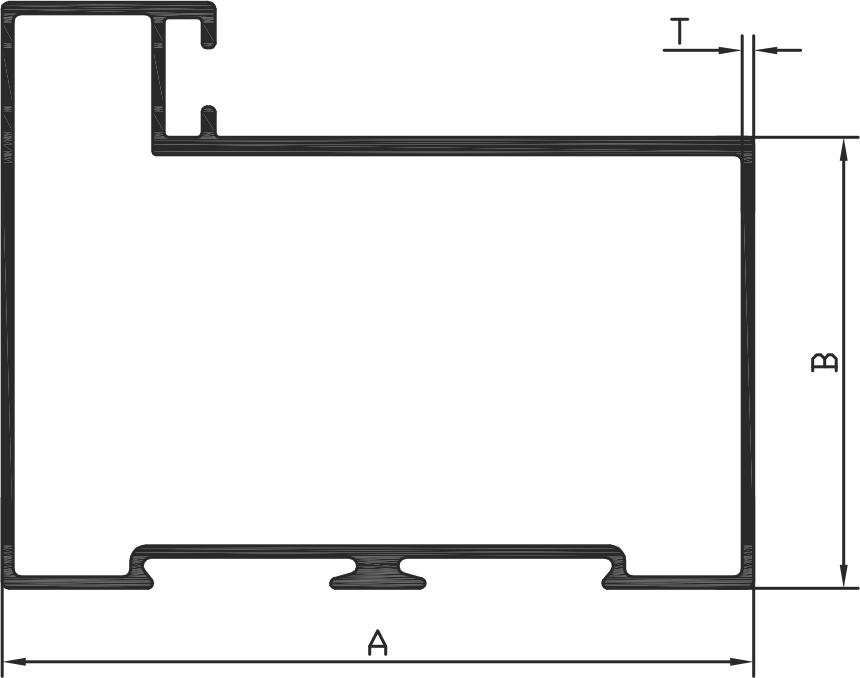

2.5 X 1.5 LEG PARTITION

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-4001	63.00	38.00	1.12	3.000-3.400

DOOR BOTTOM

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5501	19.00	19.00	2.00	0.700-0.900
SE-5506	25.00	25.00	2.00	0.900-1.100
SE-5511	38.00	38.00	2.50	1.800-2.000

DOOR TOP

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-4101	115.00	44.45	1.18	3.800-4.100

DOOR VERTICAL

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5551	38.00	25.00	1.70	1.000-1.200
SE-5552	38.00	25.00	2.35	1.400-1.600

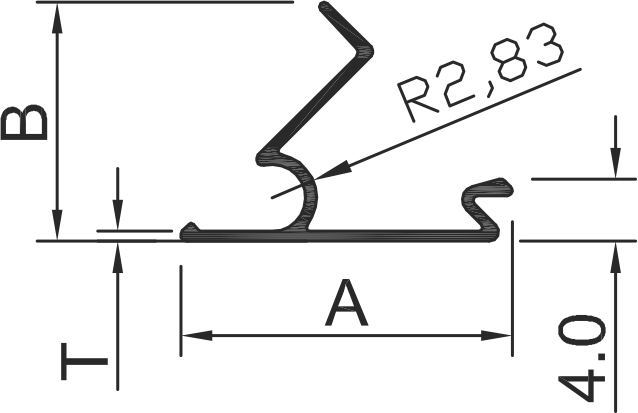

GLAZING CLIP

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3201	21.00	15.20	0.45	0.220-0.250
SE-3204	21.00	15.20	0.56	0.280-0.320
SE-3205	21.00	15.20	0.75	0.350-0.380

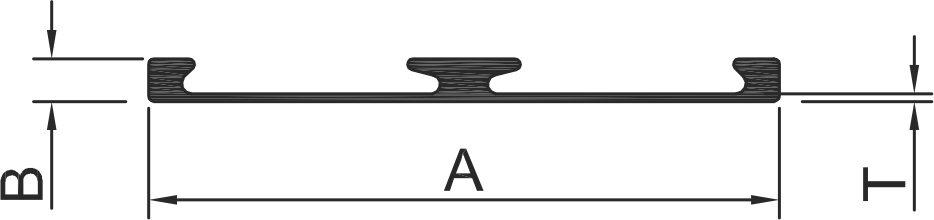

GLAZING PLATE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-3211	44.30	3.00	0.50	0.500-0.800

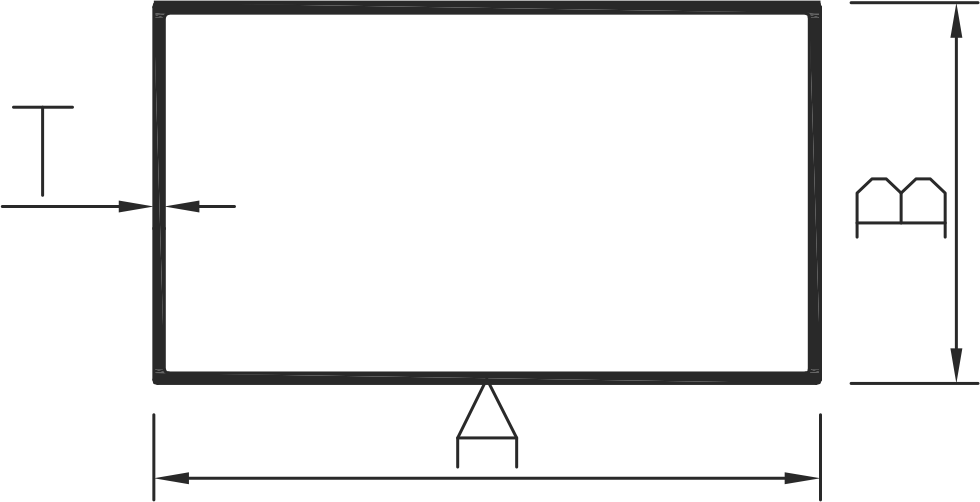

RECTANGULAR TUBE (R.T)

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5101	25.00	12.00	0.88	0.600-0.900
SE-5111	38.00	25.00	0.70	0.800-1.000
SE-5201	50.00	25.00	0.65	0.900-1.100
SE-5211	50.00	25.00	0.80	1.100-1.300
SE-5214	50.00	25.00	1.14	1.600-1.800

RECTANGULAR TUBE (R.T)

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5241	50.00	38.00	1.20	2.000-2.200
SE-5242	50.00	38.00	1.40	2.300-2.500
SE-5251	63.00	25.00	0.80	1.300-1.500
SE-5261	63.00	38.00	0.74	1.400-1.600
SE-5311	75.00	25.00	0.85	1.600-1.800
SE-5361	100.00	25.00	0.84	2.000-2.200
SE-5381	125.00	25.00	1.20	3.400-3.600

1.5X1 L.PIPE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5651	19.00	19.00	0.83	0.300-0.500

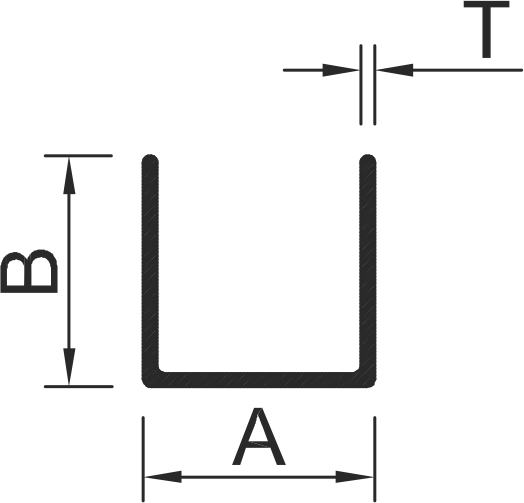

“U” CHANNLEmv

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5609	9.00	9.00	0.65	0.150-0.180
SE-5602	9.50	9.50	0.90	0.220-0.250
SE-5606	12.00	12.00	0.80	0.180-0.220

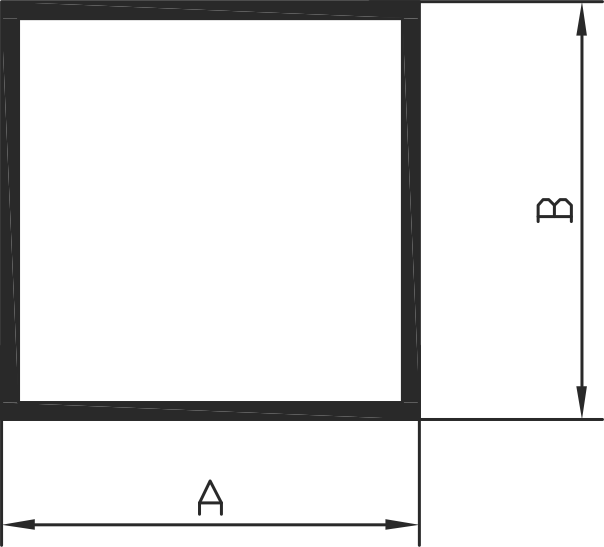

SQUARE TUBE

SEC. No.	A	B	T	Wt. (Kg/12’)
SE-5006	19.00	19.00	0.85	0.600-0.800
SE-5013	25.00	25.00	1.15	1.200-1.400
SE-5021	38.00	38.00	0.98	1.400-1.600
SE-5031	50.00	50.00	1.00	1.900-2.100
